Fully automated high throughput cell counter
Streamline Your Workflow
Complete Automation, Confident Outcomes
EVE™ HT A26
Fully Automated Cell Counter
EVE™ HT A26 is a fully automated cell counting counter engineered to streamline sample preparation and analysis. By integrating hands-free pipetting, aliquoting, diluting, staining, and counting within a single system, it delivers high-throughput performance while reducing workflow variability and ensuring reproducible results.
Designed for high-throughput cell counting applications, EVE™ HT A26 provides the efficiency and reliability expected from an automated high-throughput cell counter with the performance expected from a fluorescent cell counter, enabling laboratories to process large sample volumes with minimal hands-on intervention.

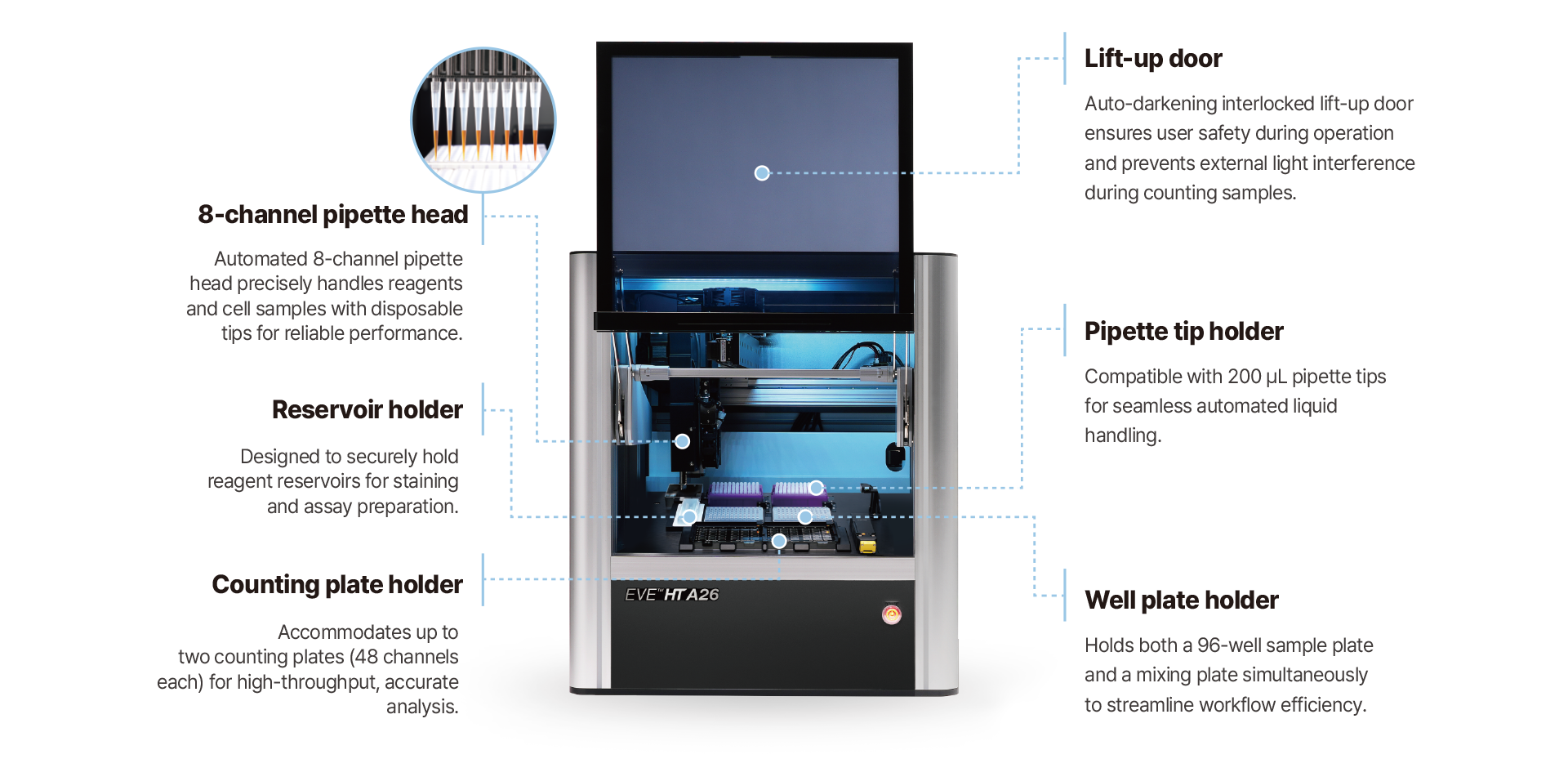

Hardware Features
After the user loads the consumables and samples on the deck, EVE™ HT A26 automatically performs the entire high throughput cell counting workflow—including aliquoting, diluting, mixing, loading, and counting.
This fully automated process allows the system to function as a walk away cell counter, reducing operator involvement while maintaining accurate and consistent cell counting results.

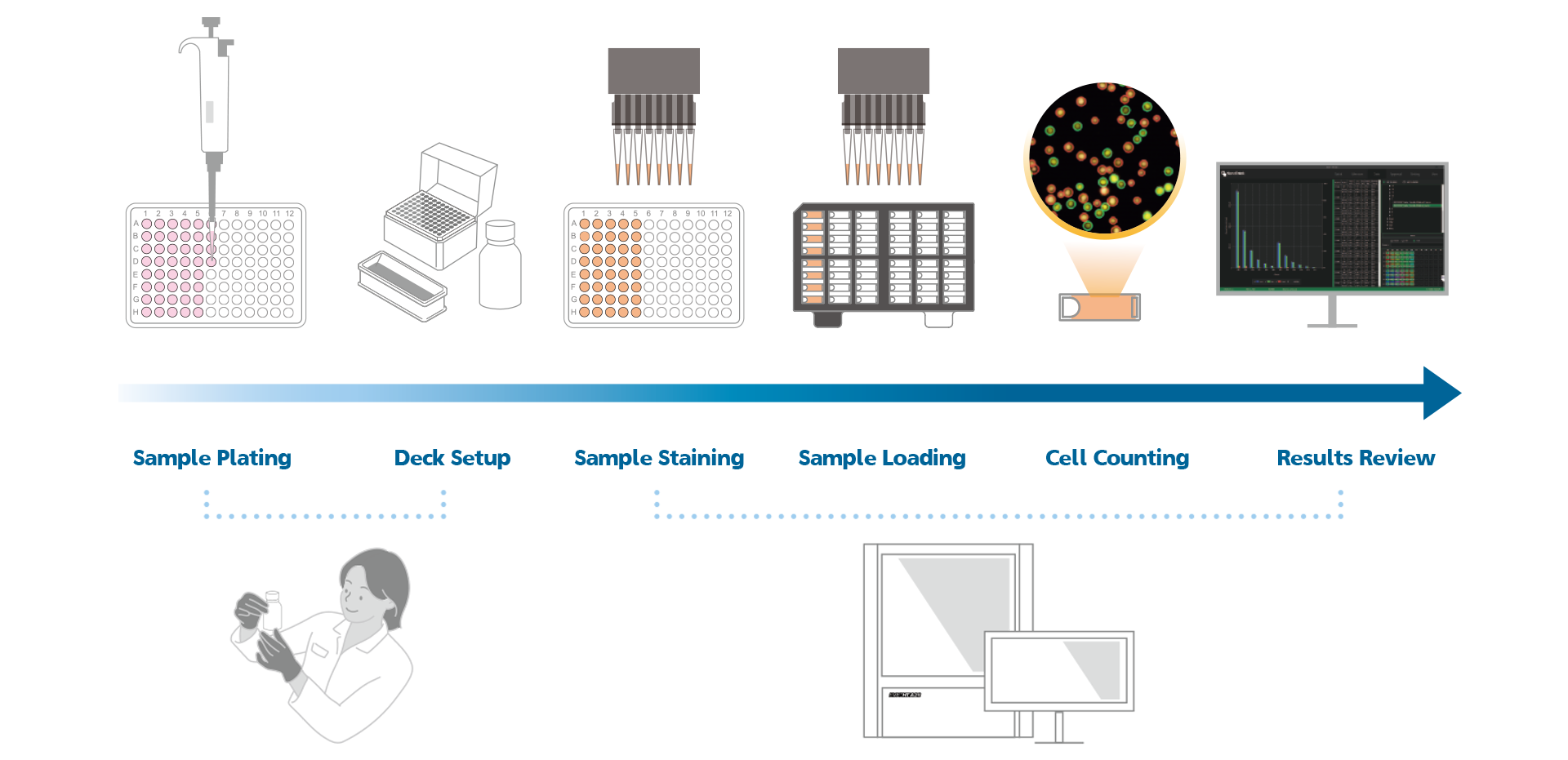

EVE™ HT A26 Workflow
EVE™ HT A26 significantly reduces hands-on working time by automating both sample preparation and counting. Its fully integrated workflow minimizes manual steps, improves overall efficiency, and accelerates processing speed—enabling the system to count up to 96 samples in just 10 minutes.
EVE™ HT A26’s workflow is optimized for automated high-throughput cell counting, supporting laboratories that require rapid and reliable cell count data across large sample batches.

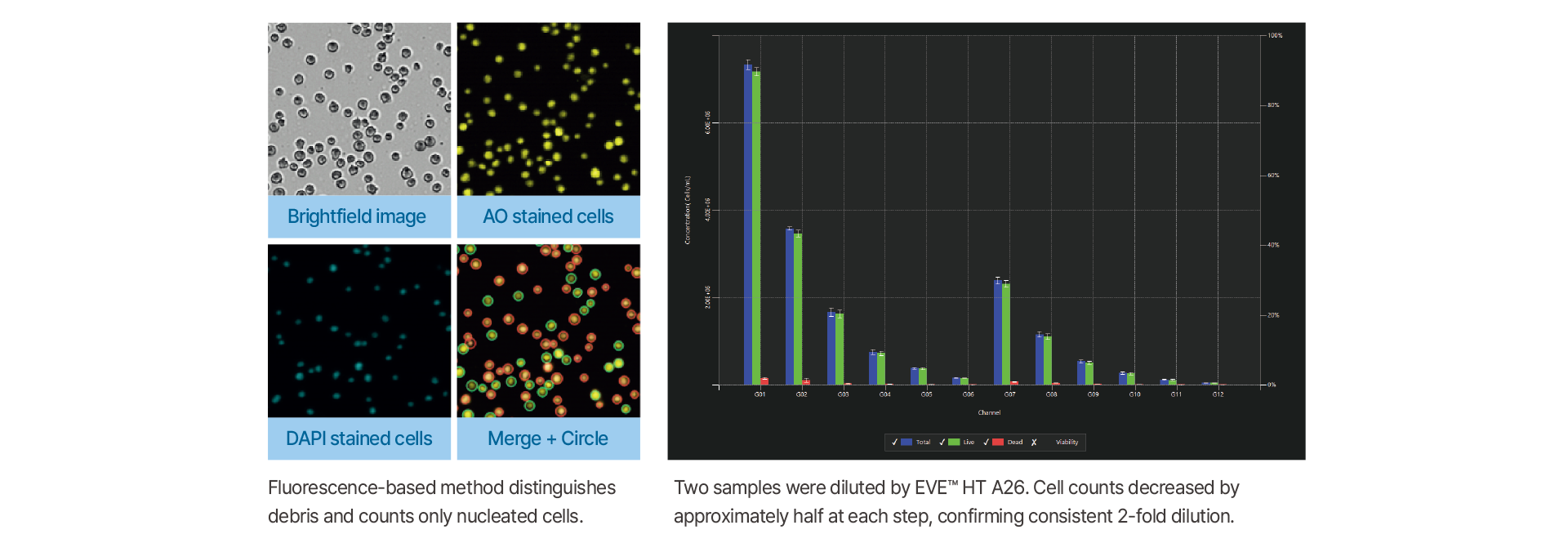

Fully Automated Sample Dilution & Staining
Dual fluorescence and brightfield channels support AO/DAPI, Trypan blue, and Erythrosin B staining, while built-in auto aliquoting and dilution further streamline operation. This standardized workflow delivers consistent performance regardless of user experience.
In addition, the integrated fluorescence capabilities support applications commonly associated with a high-throughput fluorescence cell counter, enabling efficient analysis while maintaining reproducibility across users and experiments.
Visit NanoEntek blog now!
Want to learn more about cell counting and cell therapy?
Visit to find out more!
-

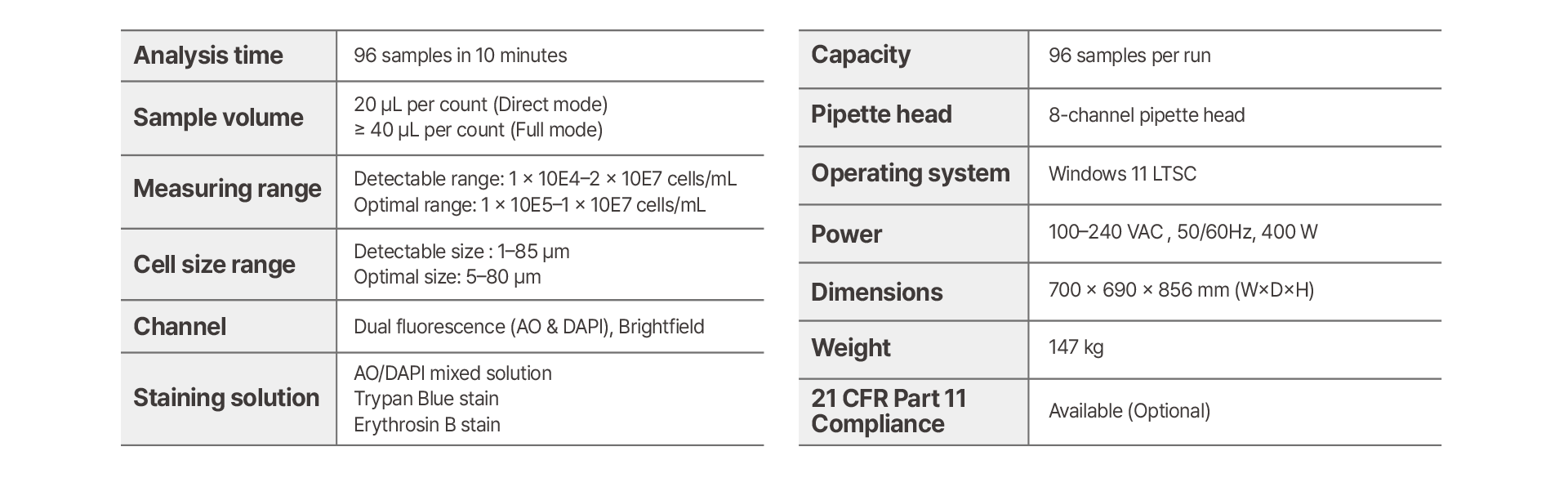

Product name / Cat. No.
EVE™ HT A26 / EVE HT A26
-
Analysis time
96 samples in 10 minutes
-
Sample volume
20 μL per count (Direct mode)
≥ 40 μL per count (Full mode) -
Measuring range
Detectable range: 1 x 10E4–2 x 10E7 cells/mL
Optimal range: 1 x 10E5–1 x 10E7 cells/mL -
Cell size range
Detectable size: 1–85 μm
Optimal size: 5–80 μm -
Channel
Dual fluorescence (AO & DAPI), Bright field
-
Staining solution
AO/DAPI mixed solution
Trypan blue stain
Erythrosin B stain -
Capacity
96 samples per run
-
Pipette head
8-channel pipette head
-
Operating system
Windows 11 LTSC
-
Power
100–240 VAC, 50/60Hx, 400W
-
Dimensions
700 (W) x 690 (D) x 856 (H) mm
-
Weight
147 kg
-
21 CFR Part 11 compliance
Available (Optional)
Related downloads Total 1
-
EVE HT A26_Brochure_NanoEntek
